Interconnect sites for replication¶

At this step, you should let the clusters know about each other and interconnect them for replication. To do so, you need to add the Replica site’s nodes as external nodes for the Main site. In the same way, you add the Main’s site nodes as external ones for the Replica site.

Every site has three replica set members and three config server replica set members. But you add only two of them as voting members, while the third member is added as a non-voting one. In doing so, you avoid split-brain situations and prevent the primary elections if the Replica site is down or there is a network disruption between the sites.

In this way, the main cluster managed by the Operator is able to reach the the replica nodes.

List the services¶

Ensure that the nodes are exposed by listing the services. Run the following command on both clusters:

$ kubectl get services

Sample output

This is the sample output for the main cluster

gke-mcs-6i19n16iou    ClusterIP      34.118.226.213   <none>          27017/TCP         30m
gke-mcs-7kc05t4an8    ClusterIP      34.118.232.25    <none>          27017/TCP         34m
gke-mcs-8rnph5kn83    ClusterIP      34.118.232.15    <none>          27017/TCP         30m
gke-mcs-c2rifb19i2    ClusterIP      34.118.227.18    <none>          27017/TCP         37m
gke-mcs-d2a5n9jthp    ClusterIP      34.118.238.169   <none>          27017/TCP         39m
gke-mcs-eu3ms5pd46    ClusterIP      34.118.233.180   <none>          27017/TCP         25m
gke-mcs-fvvrfrc8lj    ClusterIP      34.118.229.203   <none>          27017/TCP         30m
gke-mcs-gqv8a8hvj0    ClusterIP      34.118.239.68    <none>          27017/TCP         39m
gke-mcs-i7esf6en63    ClusterIP      34.118.231.126   <none>          27017/TCP         27m
gke-mcs-jrvipn8erd    ClusterIP      34.118.235.246   <none>          27017/TCP         34m
gke-mcs-mefti0gh66    ClusterIP      34.118.236.218   <none>          27017/TCP         37m
gke-mcs-q1jve1uq67    ClusterIP      34.118.225.234   <none>          27017/TCP         25m
gke-mcs-rp77hijaj0    ClusterIP      34.118.229.123   <none>          27017/TCP         39m
gke-mcs-tjbtnp3ica    ClusterIP      34.118.236.161   <none>          27017/TCP         27m
main-cluster-cfg      ClusterIP      None             <none>          27017/TCP         44m
main-cluster-cfg-0    ClusterIP      34.118.227.52    34.42.135.122   27017:31233/TCP   44m
main-cluster-cfg-1    ClusterIP      34.118.233.187   34.135.82.96    27017:31941/TCP   43m
main-cluster-cfg-2    ClusterIP      34.118.227.173   35.202.26.197   27017:30961/TCP   42m
main-cluster-mongos   ClusterIP      34.118.233.114   <none>          27017/TCP         44m
main-cluster-rs0      ClusterIP      None             <none>          27017/TCP         44m
main-cluster-rs0-0    ClusterIP      34.118.231.58    <none>          27017/TCP         44m
main-cluster-rs0-1    ClusterIP      34.118.239.165   <none>          27017/TCP         43m
main-cluster-rs0-2    ClusterIP      34.118.225.3     <none>          27017/TCP         42m

Add the Replica site nodes to the Main site¶

Modify the deploy/cr-main.yaml file of the Main site and define the exposed nodes of the Replica site in the replsets.externalNodes and sharding.configsvrReplset.externalNodes subsections. For each node, specify the following:

set host to the URL of the external replset instance. When exposed, a node has its own service, recognized by the domain name <service-name>.<namespace>.svc.clusterset.local
set port to the port number of the external node. If not set, the default 27017 port is used,
set priority to define the priority of the external node. The default priority for local members of the cluster is 2. When you add external nodes, set the lower priority to avoid an unmanaged node being elected as a primary. A zero 0 priority adds the node as a non-voting member.
set votes to the number of votes an external node can cast in a replica set election (0 is default and should be used for non-voting members of the cluster).

Here is an example:

apiVersion: psmdb.percona.com/v1
kind: PerconaServerMongoDB
metadata:
  name: main-cluster
spec:
...
  updateStrategy: SmartUpdate
  multiCluster:
    enabled: true
    DNSSuffix: svc.clusterset.local
  upgradeOptions:
    apply: disabled
    schedule: "0 2 * * *"
  secrets:
    users: my-cluster-name-secrets
    encryptionKey: my-cluster-name-mongodb-encryption-key
  replsets:
  - name: rs0
    size: 3
    externalNodes:
    - host: replica-cluster-rs0-0.psmdb.svc.clusterset.local
      votes: 1
      priority: 1
    - host: replica-cluster-rs0-1.psmdb.svc.clusterset.local
      votes: 1
      priority: 1
    - host: replica-cluster-rs0-2.psmdb.svc.clusterset.local
      votes: 0
      priority: 0
      expose:
      enabled: true
      type: ClusterIP

  sharding:
    enabled: true
    configsvrReplSet:
      size: 3
      externalNodes:
      - host: replica-cluster-cfg-0.psmdb.svc.clusterset.local
        votes: 1
        priority: 1
      - host: replica-cluster-cfg-1.psmdb.svc.clusterset.local
        votes: 1
        priority: 1
      - host: replica-cluster-cfg-2.psmdb.svc.clusterset.local
        votes: 0
        priority: 0
      expose:
        enabled: true
        type: ClusterIP

    mongos:
      size: 3
      expose:
        type: ClusterIP

Apply the changes:
```
$ kubectl apply -f deploy/cr-main.yaml
```

Add Main site nodes to the Replica site¶

Modify the deploy/cr-main.yaml file of the Replica site and define the exposed nodes of the Main site in the replsets.externalNodes and sharding.configsvrReplset.externalNodes subsections. For each node, specify the following:

apiVersion: psmdb.percona.com/v1
kind: PerconaServerMongoDB
metadata:
  name: replica-cluster
spec:
...
  replsets:
  - name: rs0
    size: 3
    externalNodes:
    - host: main-cluster-rs0-0.psmdb.svc.clusterset.local
        votes: 1
        priority: 1
    - host: main-cluster-rs0-1.psmdb.svc.clusterset.local
        votes: 1
        priority: 1
    - host: main-cluster-rs0-2.psmdb.svc.clusterset.local
        votes: 0
        priority: 0

  sharding:
    configsvrReplSet:
        externalNodes:
        - host: main-cluster-cfg-0.psmdb.svc.clusterset.local
          votes: 1
          priority: 1
        - host: main-cluster-cfg-1.psmdb.svc.clusterset.local
          votes: 1
          priority: 1
        - host: main-cluster-cfg-2.psmdb.svc.clusterset.local
          votes: 0
          priority: 0

Apply the configuration:

$ kubectl apply -f deploy/cr-replica.yaml

Check cluster connectivity¶

Verify that the clusters are interconnected by connecting to one of them.

Connect to one of the Pods directly using the credentials of the database admin user. Refer to the Connect to Percona Server for MongoDB tutorial how to retrieve user credentials:
```
$ kubectl exec -it main-cluster-rs0-0 -- mongosh -u databaseAdmin -p <dbAdminPassword>
```

List replica set members:

rs.status().members

Sample output

{
    _id: 0,
    name: 'main-cluster-rs0-0.psmdb.svc.clusterset.local:27017',
    health: 1,
    state: 1,
    stateStr: 'PRIMARY',
    .....
},
{
    _id: 1,
    name: 'main-cluster-rs0-1.psmdb.svc.clusterset.local:27017',
    health: 1,
    state: 2,
    stateStr: 'SECONDARY',
    .....
},
{
    _id: 2,
    name: 'main-cluster-rs0-2.psmdb.svc.clusterset.local:27017',
    health: 1,
    state: 2,
    stateStr: 'SECONDARY',
    .....
},
{
    _id: 3,
    name: 'replica-cluster-rs0-0.psmdb.svc.clusterset.local:27017',
    health: 1,
    state: 2,
    stateStr: 'SECONDARY',
    ......
},
{
    _id: 4,
    name: 'replica-cluster-rs0-1.psmdb.svc.clusterset.local:27017',
    health: 1,
    state: 2,
    stateStr: 'SECONDARY',
    ....
},
{
    _id: 5,
    name: 'replica-cluster-rs0-2.psmdb.svc.clusterset.local:27017',
    health: 1,
    state: 2,
    stateStr: 'SECONDARY',
    ....
}

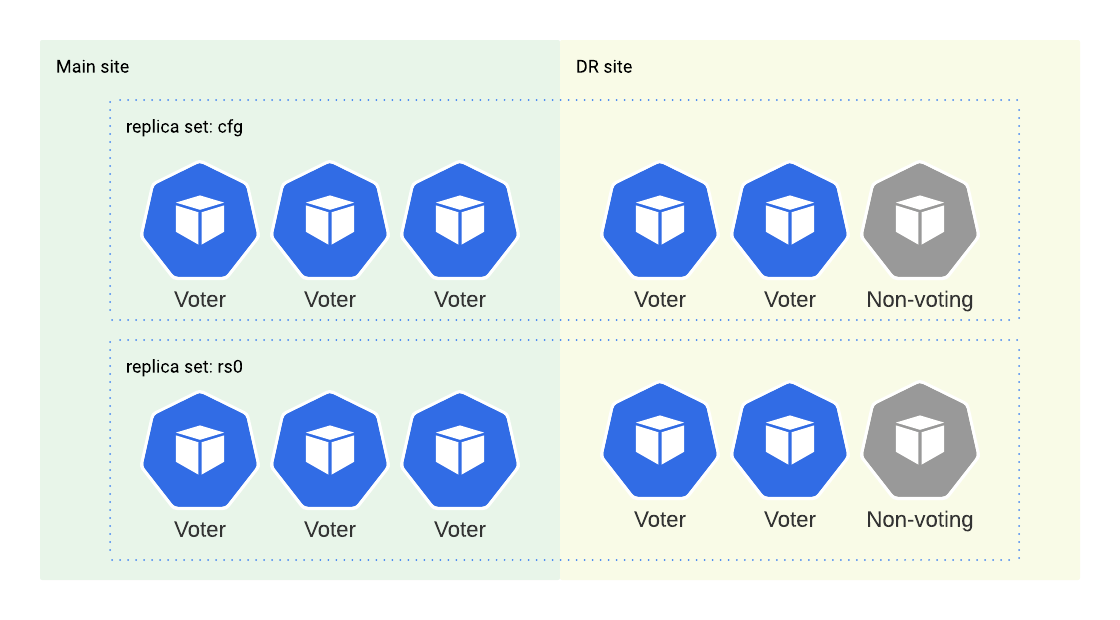

The members from both clusters appear in the list and the configuration looks like this:

Next steps¶

Test services failover
